Structure WordPress Theme Documentation

Introduction

Thank you for purchasing a WordPress Theme. This documentation consists of several parts and shows you the entire process of setting up and administering a WordPress Website from scratch.

What is WordPress CMS?

WordPress is a free and open source blogging tool and a content management system (CMS) based on PHP and MySQL. It enables you to build Websites and powerful on-line applications and requires almost no technical skills or knowledge to manage. Many aspects, including its ease of use and extensibility, have made WordPress the most popular Web site software available. Learn More

What is a WordPress template

A WordPress template is a skin for a website built with the WordPress CMS platform. In other words, you can easily change your WordPress Web site appearance by installing a new template in a few easy steps. With all its simplicity, a WordPress template is provided with all the necessary source files and you are free to edit or extend it the way you need.

Help and Support

Files structure

The template package you have downloaded consists of several folders. Let's see what each folder contains:

  • documentation - contains documentation files.
    • documentation.html - the main documentation file. You are right here :)
  • screenshots - contains template screenshots. Not for production.
  • theme - contains WordPress theme files.
    • theme####.zip - this folder content all the necessary files for the theme.
    • sample_data - contains files that can make your WordPress website look like our live demo.
      • sample_data.xml - contains all template sample data (posts, pages, categories, etc.).
      • various images and other media files
    • manuall_install - contains files that can make your WordPress website look like our live demo.
      • uploads - contains theme images.
      • theme#####.sql - database backup file (contains theme content).
  • license.txt - contains license details.
  • readme.txt - contain information about theme images path and font use and usage scritps.

Template installation

Template installation is very easy process. The installation process includes only two simple steps: theme installation and sample data installation.

All installation steps can be done within WordPress interface. It makes process comfortable and fast.

Step 1. Theme installation

  1. Go to the menu Appearance > Themes and click the Add New Theme button.
  2. Click the Upload link.
  3. Click the Browse button and navigate to the unzipped template package on your computer.
  4. Look for a file called structure-pro.zip Click on it to select, then click OK.
  5. Click the Install Now button and wait until the installation is complete.
  6. Click the Activate link to change the current layout of the site to the theme your purchased.
  7. Go to Appearance >> Theme Options >> Restore Default.

Congratulations, your theme have been successfully installed!

Step 2. Sample Data Installation

To make your WordPress website look like our live demo, please follow the instructions below.

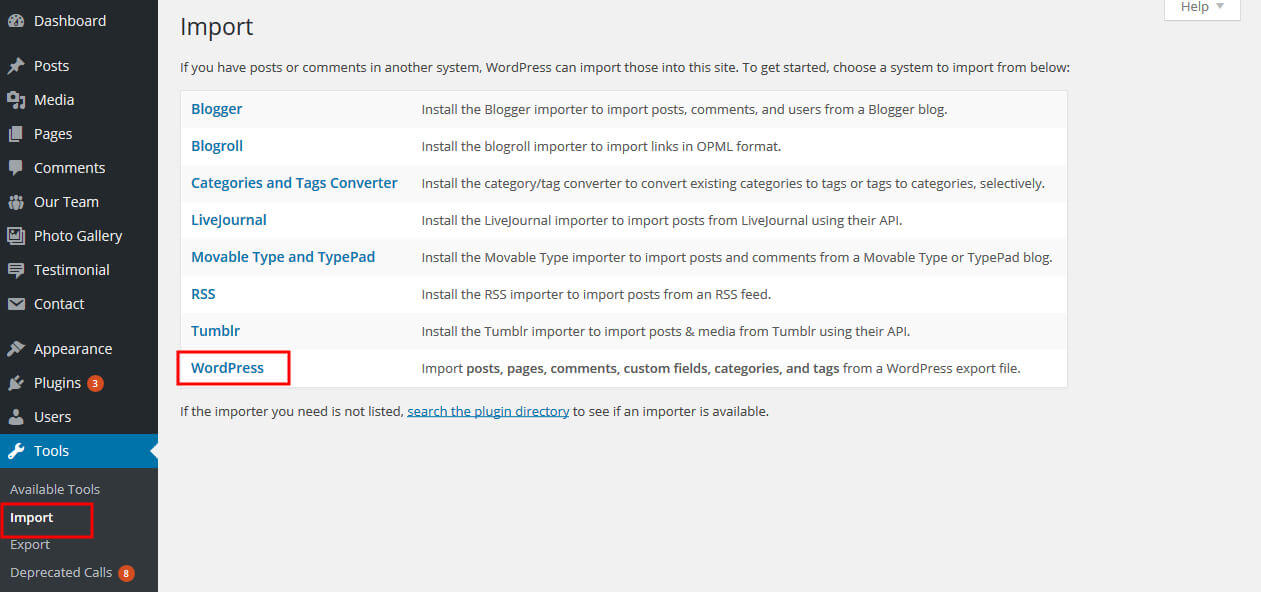

  1. Go to the tools Select import option and select wordpress and install then browse xml file and you'r done. See below screenshot.

How to set up homepage

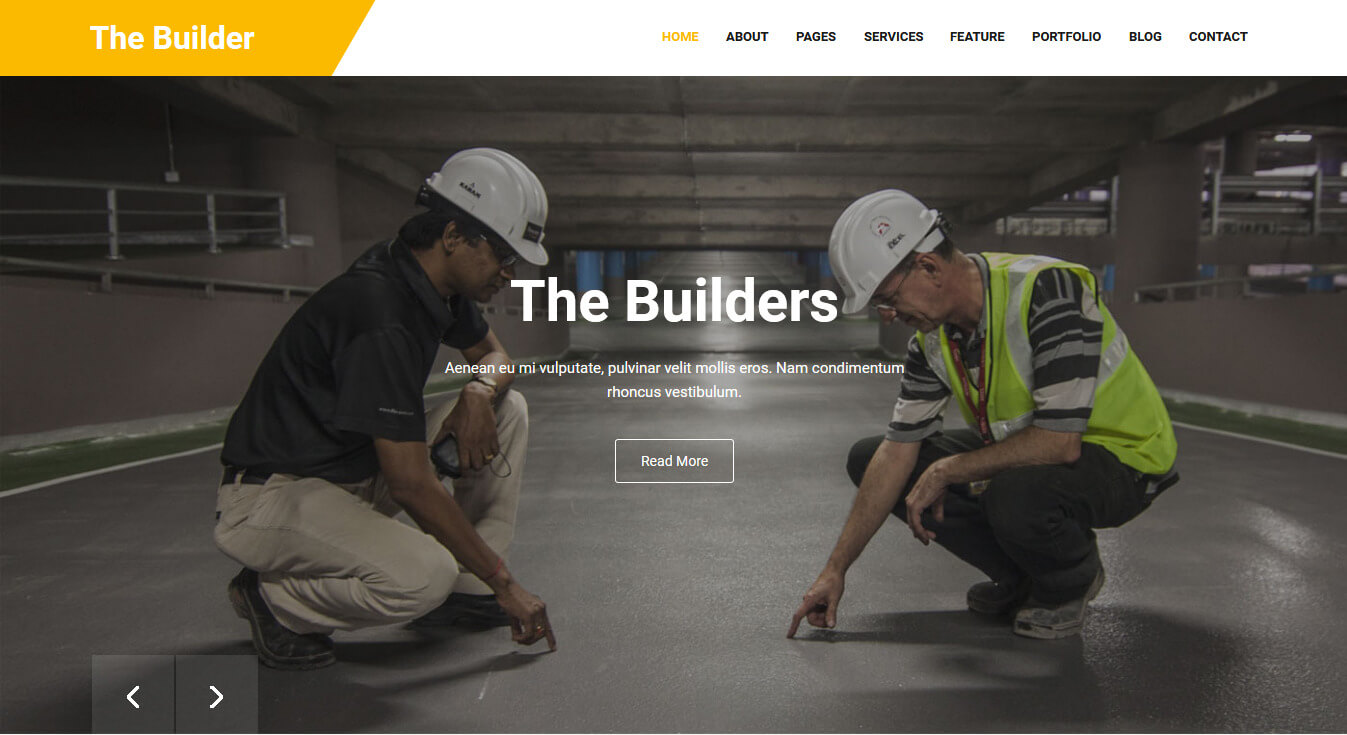

Setup Header

Follow these instructions to setup header.

  • For Site Name/Logo: For changing site name go to Settings >> General >> Site Title OR if you want to uplaod logo for your site go to Appearance >> Theme Options >> Basic settings >> Logo. Please see the theme option tab in this documentation for more details.

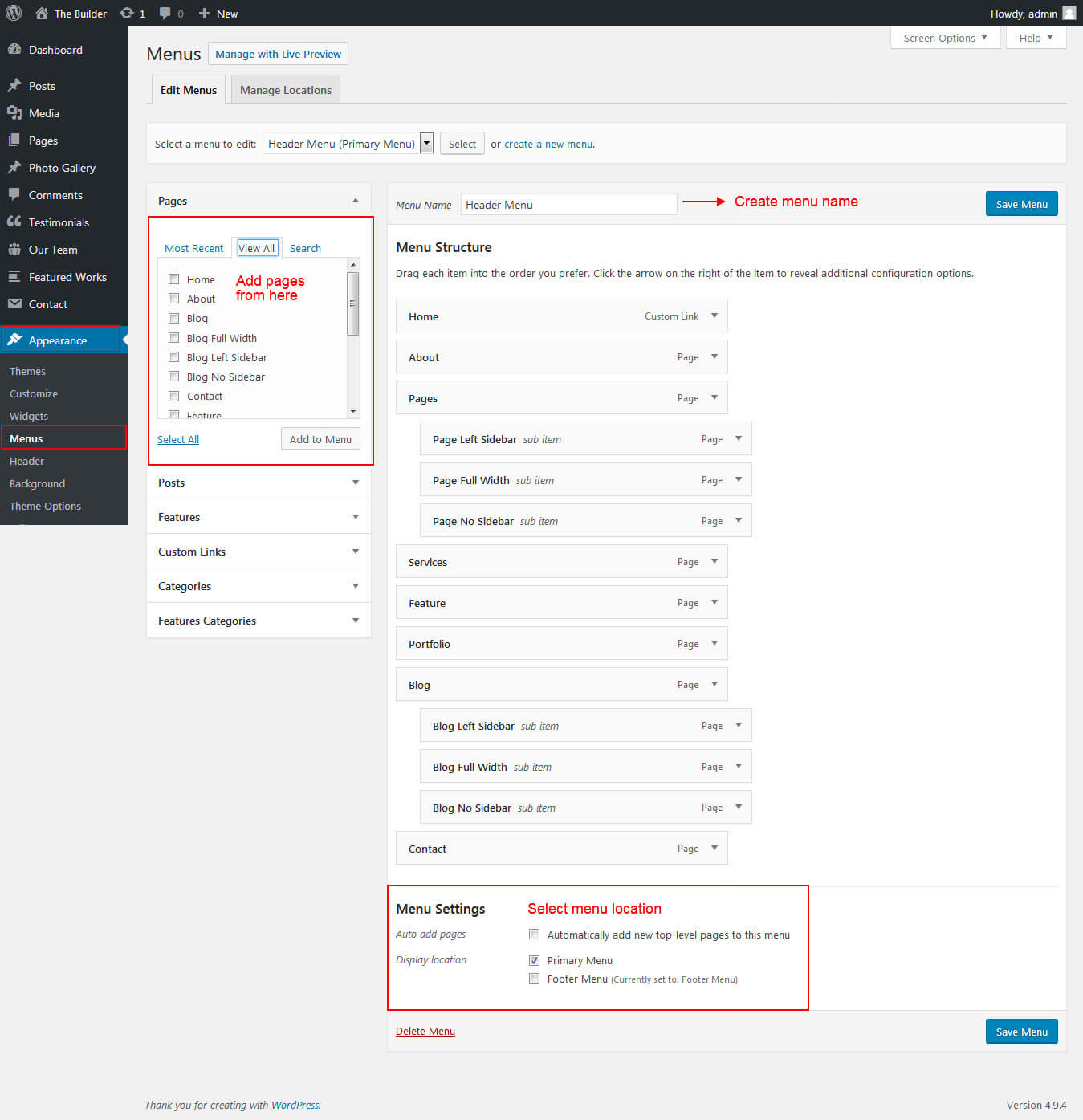

  • For Navigation: See the Setup Navigation tab of this documentation.
  • For Slider: Go to Appearance >> Theme Options >> Homepage Slider >> Upload image, Add Title, Add Description

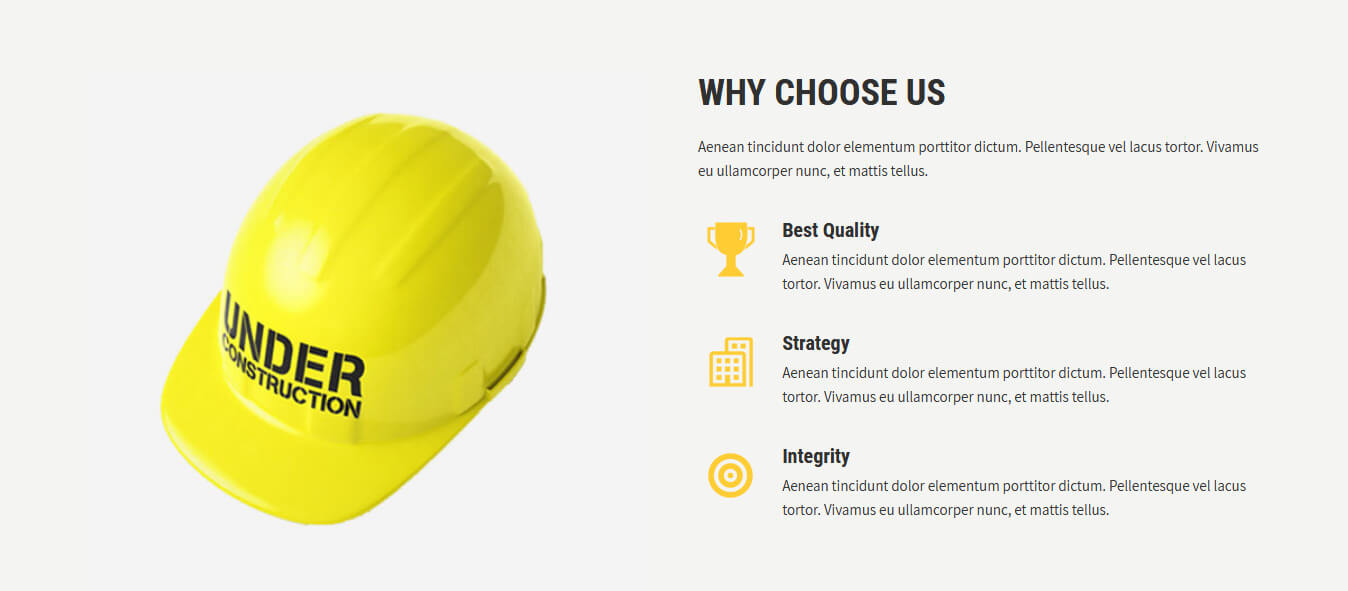

Setup Why Choose Us Section

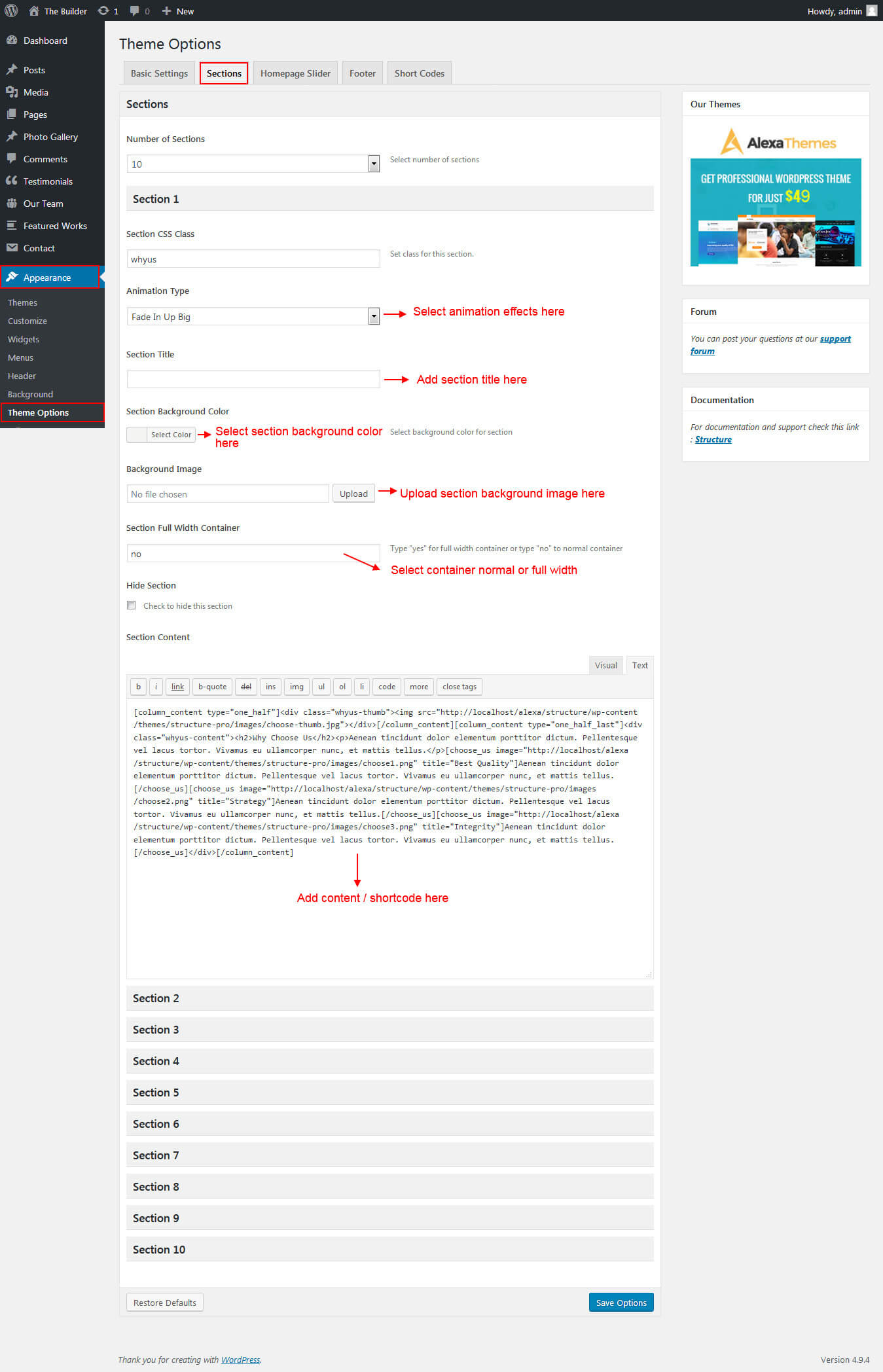

For setting up why choose us section Go to >> Appearance >> Theme Options >> Sections >> Select Section 1.

Shortcode/Content for Why Choose Us Section.
[column_content type="one_half"]<div class="whyus-thumb"><img src="http://localhost/alexa/structure/wp-content/themes/structure-pro/images/choose-thumb.jpg"></div>[/column_content][column_content type="one_half_last"]<div class="whyus-content"><h2>Why Choose Us</h2><p>Aenean tincidunt dolor elementum porttitor dictum. Pellentesque vel lacus tortor. Vivamus eu ullamcorper nunc, et mattis tellus.</p>[choose_us image="http://localhost/alexa/structure/wp-content/themes/structure-pro/images/choose1.png" title="Best Quality"]Aenean tincidunt dolor elementum porttitor dictum. Pellentesque vel lacus tortor. Vivamus eu ullamcorper nunc, et mattis tellus.[/choose_us][choose_us image="http://localhost/alexa/structure/wp-content/themes/structure-pro/images/choose2.png" title="Strategy"]Aenean tincidunt dolor elementum porttitor dictum. Pellentesque vel lacus tortor. Vivamus eu ullamcorper nunc, et mattis tellus.[/choose_us][choose_us image="http://localhost/alexa/structure/wp-content/themes/structure-pro/images/choose3.png" title="Integrity"]Aenean tincidunt dolor elementum porttitor dictum. Pellentesque vel lacus tortor. Vivamus eu ullamcorper nunc, et mattis tellus.[/choose_us]</div>[/column_content]

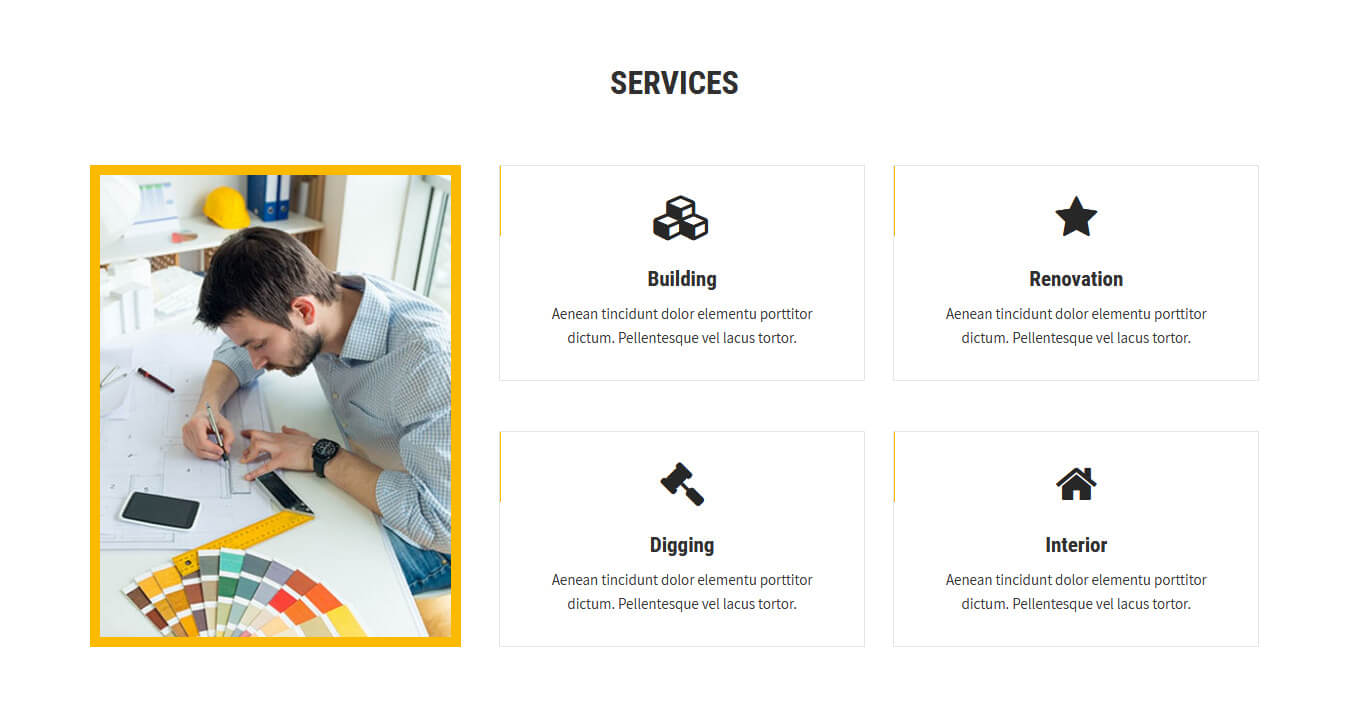

Setup Services Section

For setting up services section Go to >> Appearance >> Theme Options >> Sections >> Select Section 2.

Shortcode/Content for Services Section.
<div class="ser-left-thumb"><img src="http://localhost/alexa/structure/wp-content/themes/structure-pro/images/ser-left-img.jpg"><figcaption></figcaption></div><div class="ser-right-content">[services icon="cubes" title="Building" link="#"]Aenean tincidunt dolor elementu porttitor dictum. Pellentesque vel lacus tortor.[/services][services icon="star" title="Renovation" link="#" last="yes"]Aenean tincidunt dolor elementu porttitor dictum. Pellentesque vel lacus tortor.[/services][services icon="gavel" title="Digging" link="#"]Aenean tincidunt dolor elementu porttitor dictum. Pellentesque vel lacus tortor.[/services][services icon="home" title="Interior" link="#" last="yes"]Aenean tincidunt dolor elementu porttitor dictum. Pellentesque vel lacus tortor.[/services]</div><div class="clear"></div>

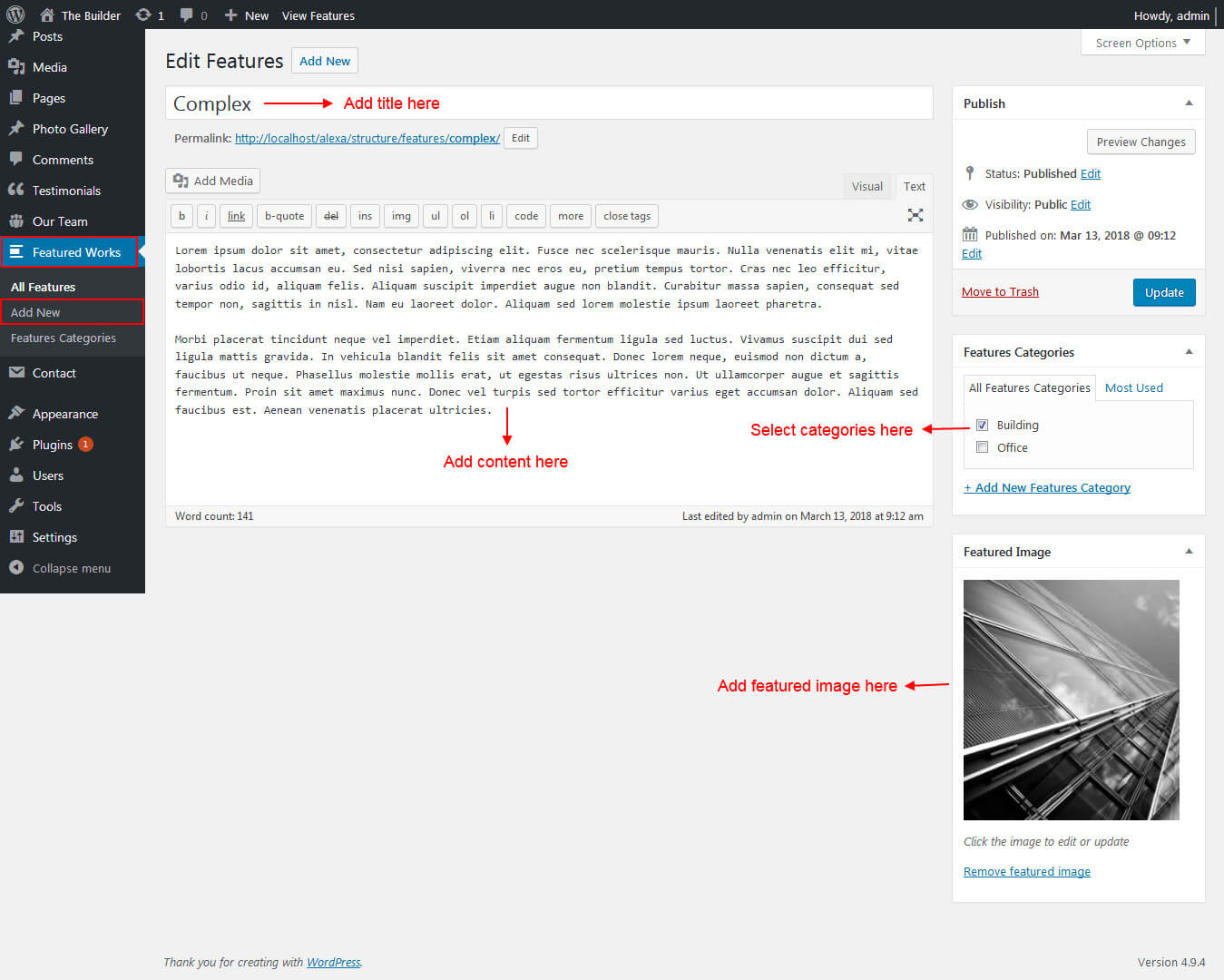

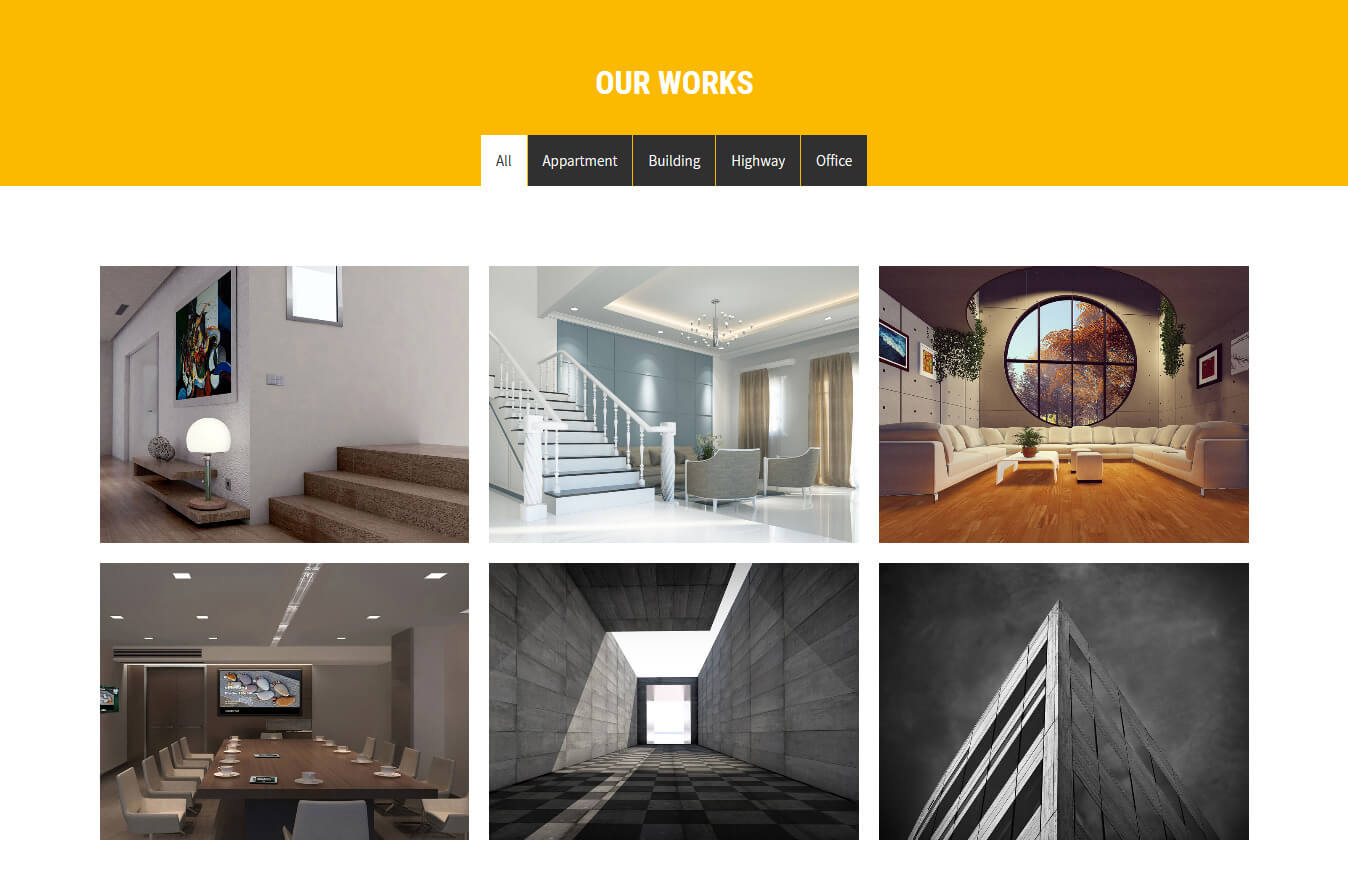

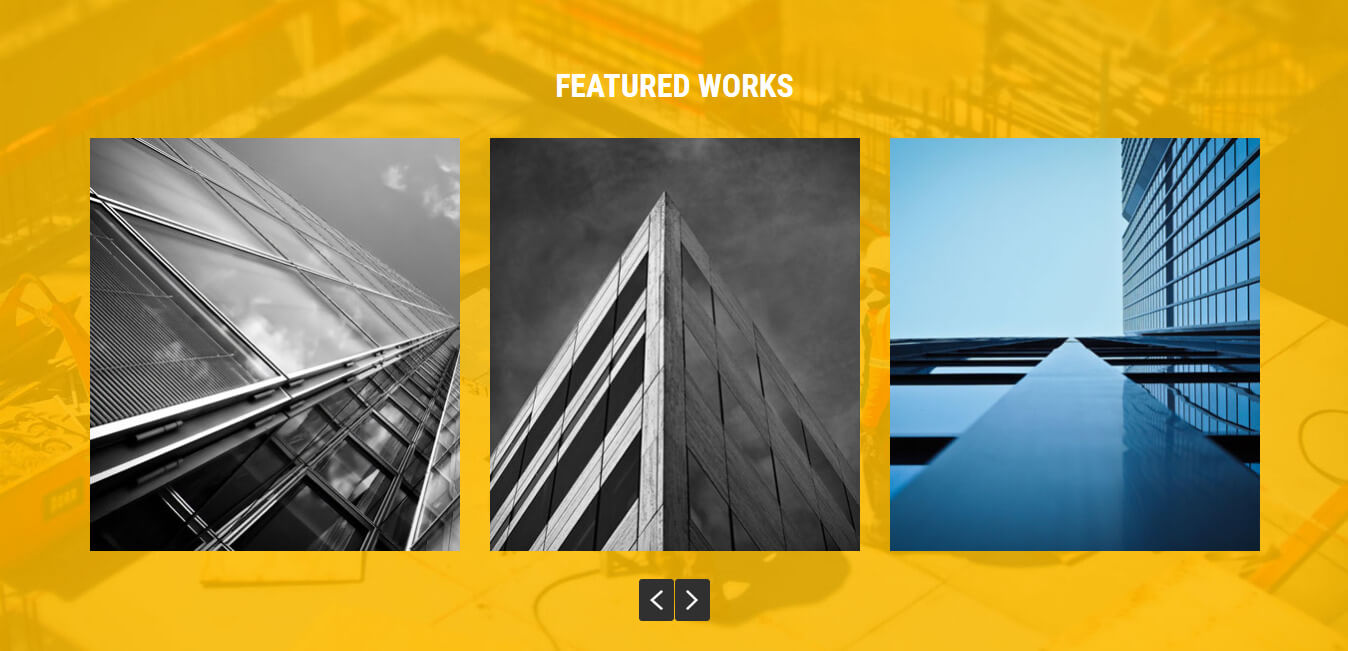

Setup Featured Works Section

For setting up featured works section Go to >> Appearance >> Theme Options >> Sections >> Select Section 3.

For setting up featured works page first of all you need to add some posts by using Featured Works Posts. Follow below instruction to add posts.

Once you added posts in the Featured Works Posts type after that you just have to add post shortcode in the sections content area and you'r done.

Shortcode/Content for Featured Works Section.
[featured_works show="3"]

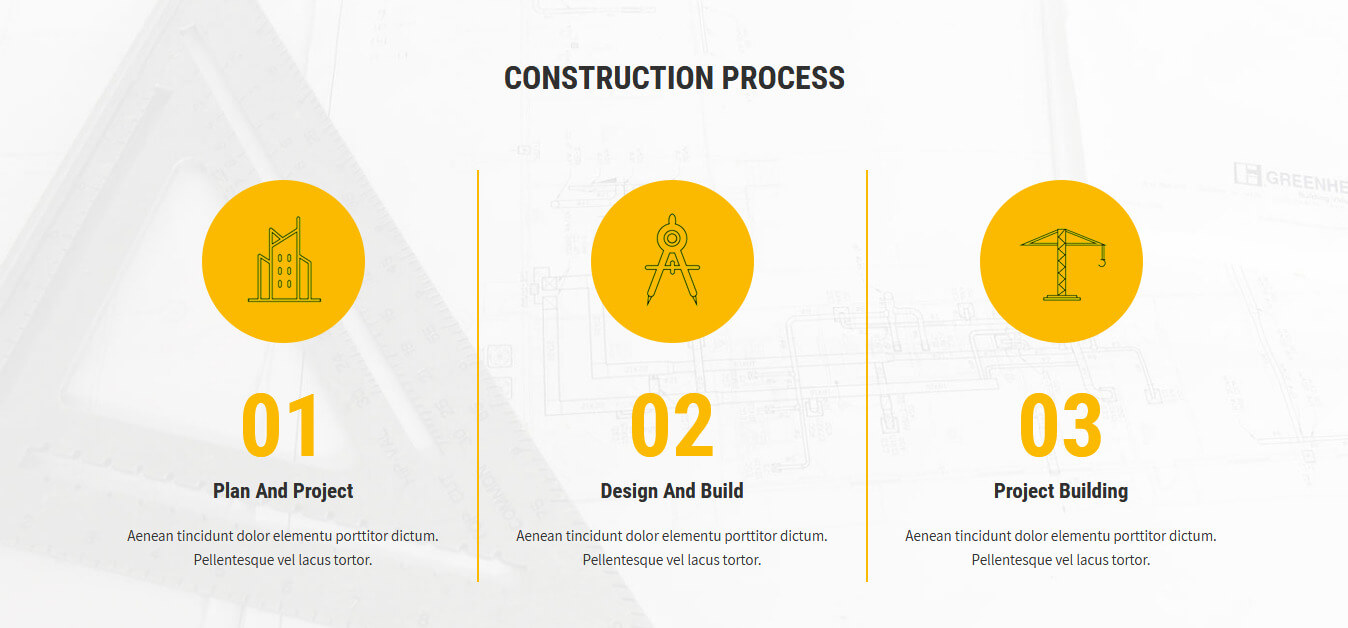

Setup Construction Process Section

For setting up construction process section Go to >> Appearance >> Theme Options >> Sections >> Select Section 4.

Shortcode/Content for Construction Process Section.
[process image="http://localhost/alexa/structure/wp-content/themes/structure-pro/images/pro-img-1.png" number="01" title="Plan And Project"]Aenean tincidunt dolor elementu porttitor dictum. Pellentesque vel lacus tortor.[/process][process image="http://localhost/alexa/structure/wp-content/themes/structure-pro/images/pro-img-2.png" number="02" title="Design And Build"]Aenean tincidunt dolor elementu porttitor dictum. Pellentesque vel lacus tortor.[/process][process image="http://localhost/alexa/structure/wp-content/themes/structure-pro/images/pro-img-3.png" number="03" title="Project Building" last="yes"]Aenean tincidunt dolor elementu porttitor dictum. Pellentesque vel lacus tortor.[/process]

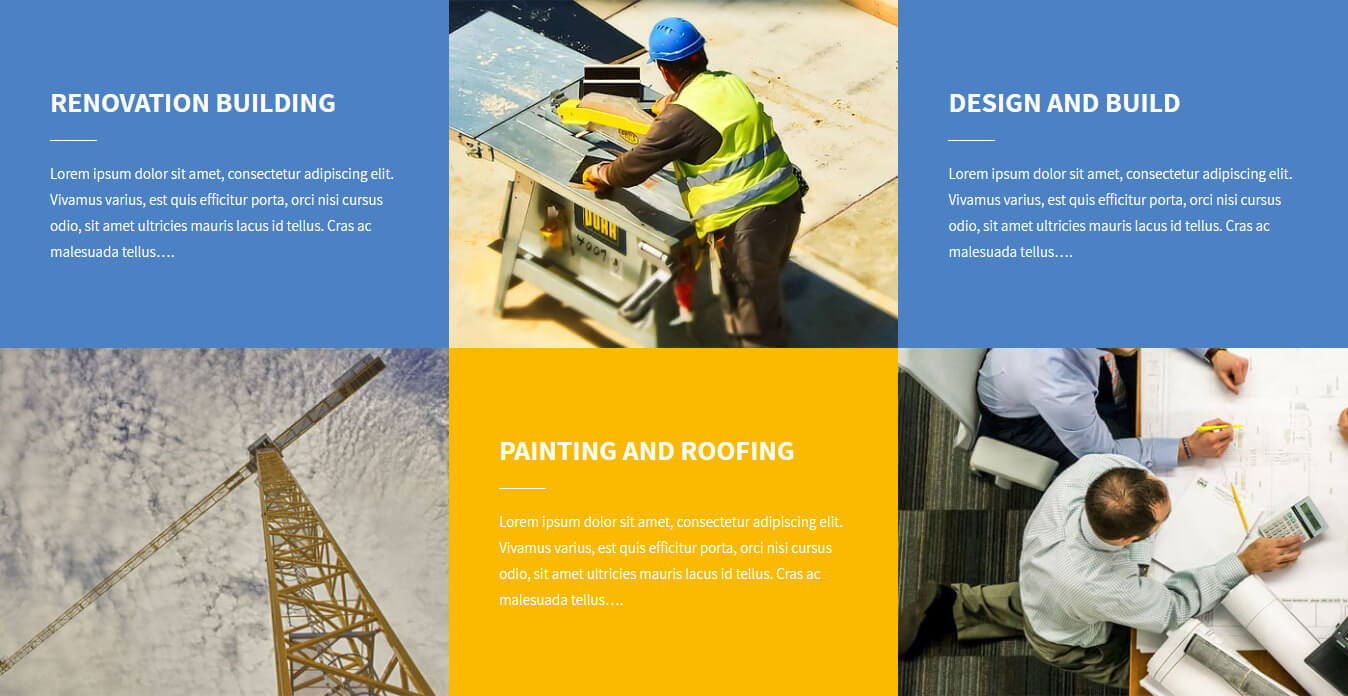

Setup Recent Posts Section

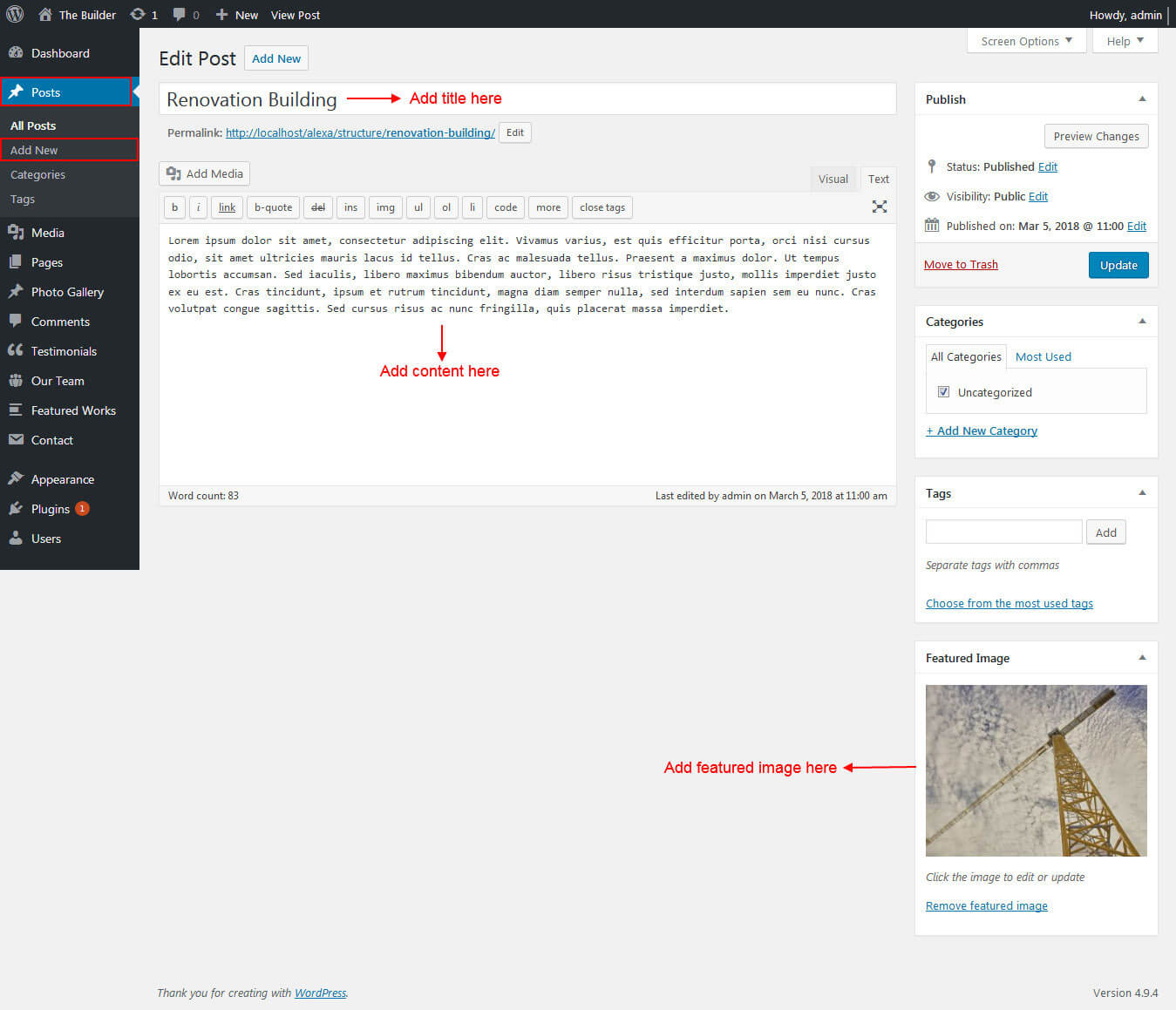

For setting up recent posts section first of all you need to add some posts by using Posts. Follow below instruction to add posts.

Once you added posts in the recent post Posts type after that you just have to add post shortcode in the sections content area and you'r done. (Section 5.)

Shortcode/Content for Recent Posts Section
[latest-news showposts="3" date="show" author="show"]

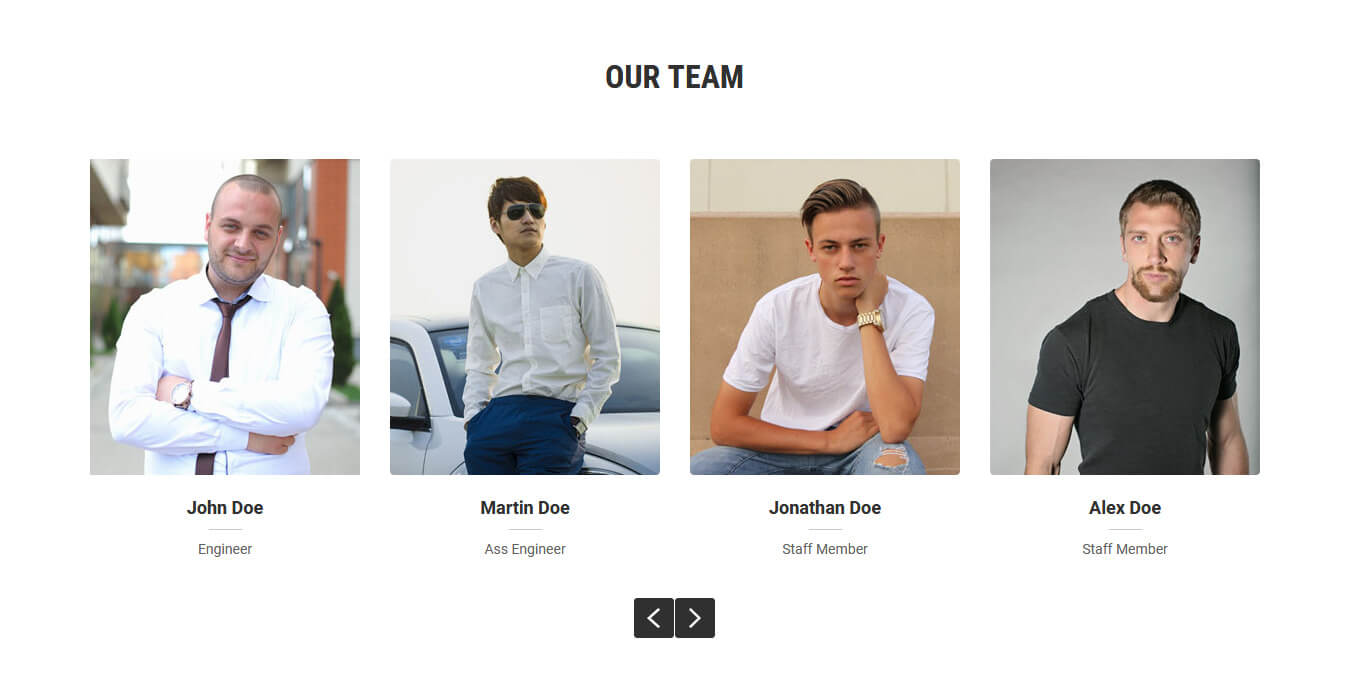

Setup Our Team Section

For setting up our team section Go to >> Appearance >> Theme Options >> Sections >> Select Section 6.

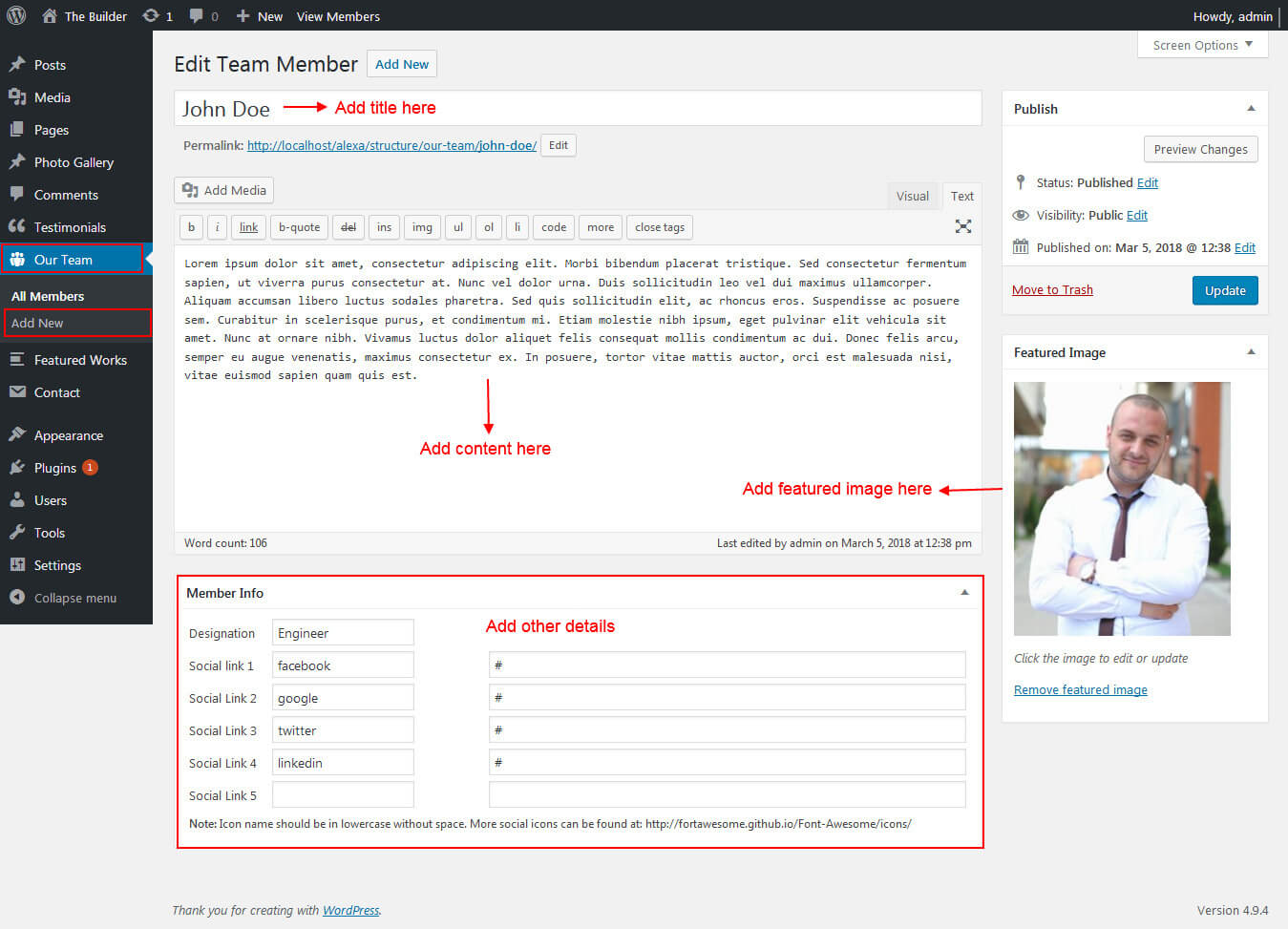

For setting up Our Team page first of all you need to add some posts by using Our Team Posts. Follow below instruction to add posts.

Once you added posts in the Our Team Posts type after that you just have to add post shortcode in the sections content area and you'r done.

Shortcode/Content for Our Team Section.
[our-team show="4"]

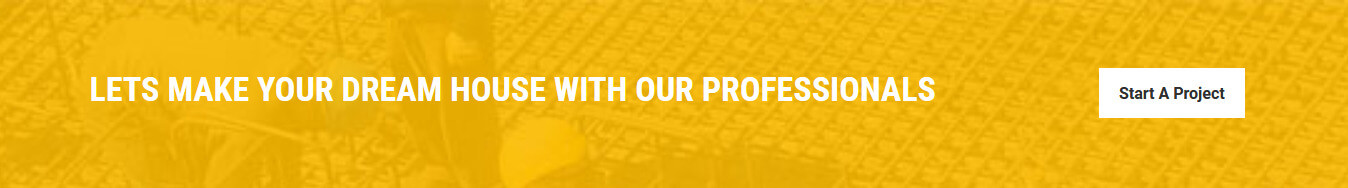

Setup Start A Project Section

For setting up start a project section Go to >> Appearance >> Theme Options >> Sections >> Select Section 8.

Shortcode/Content for Start A Project Section.
<div class="project-title"><h3>Lets Make Your Dream House With Our Professionals</h3></div><div class="project-button"><a class="buttonstyle1" href="#">Start A Project</a></div><div class="clear"></div>

Setup Client Testimonials Section

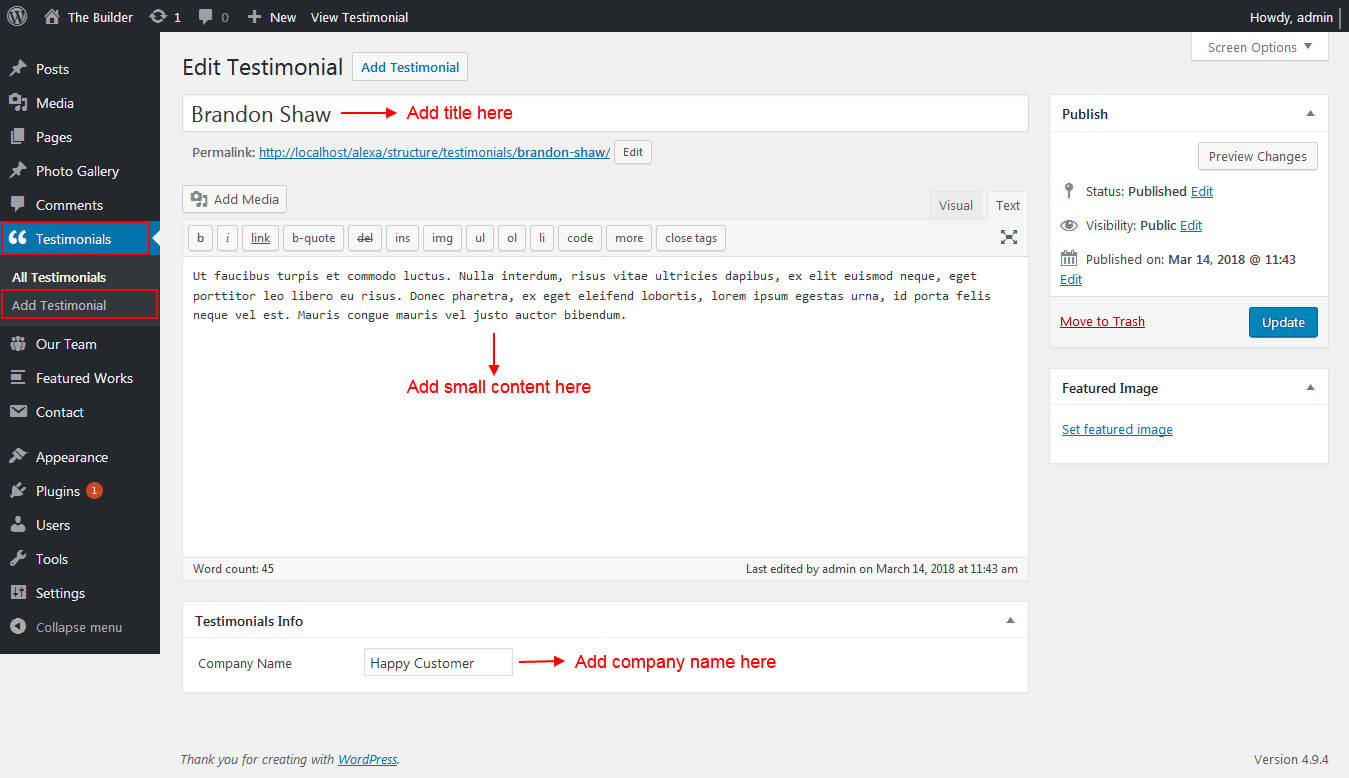

For setting up client testimonials section first of all you need to add some testimonials by using testimonials post type please see the below screenshot.

After adding post to Client Testimonials go to Appearance >> Theme Options >> Sections >> Section 9.

Setup Get Free Registration Section

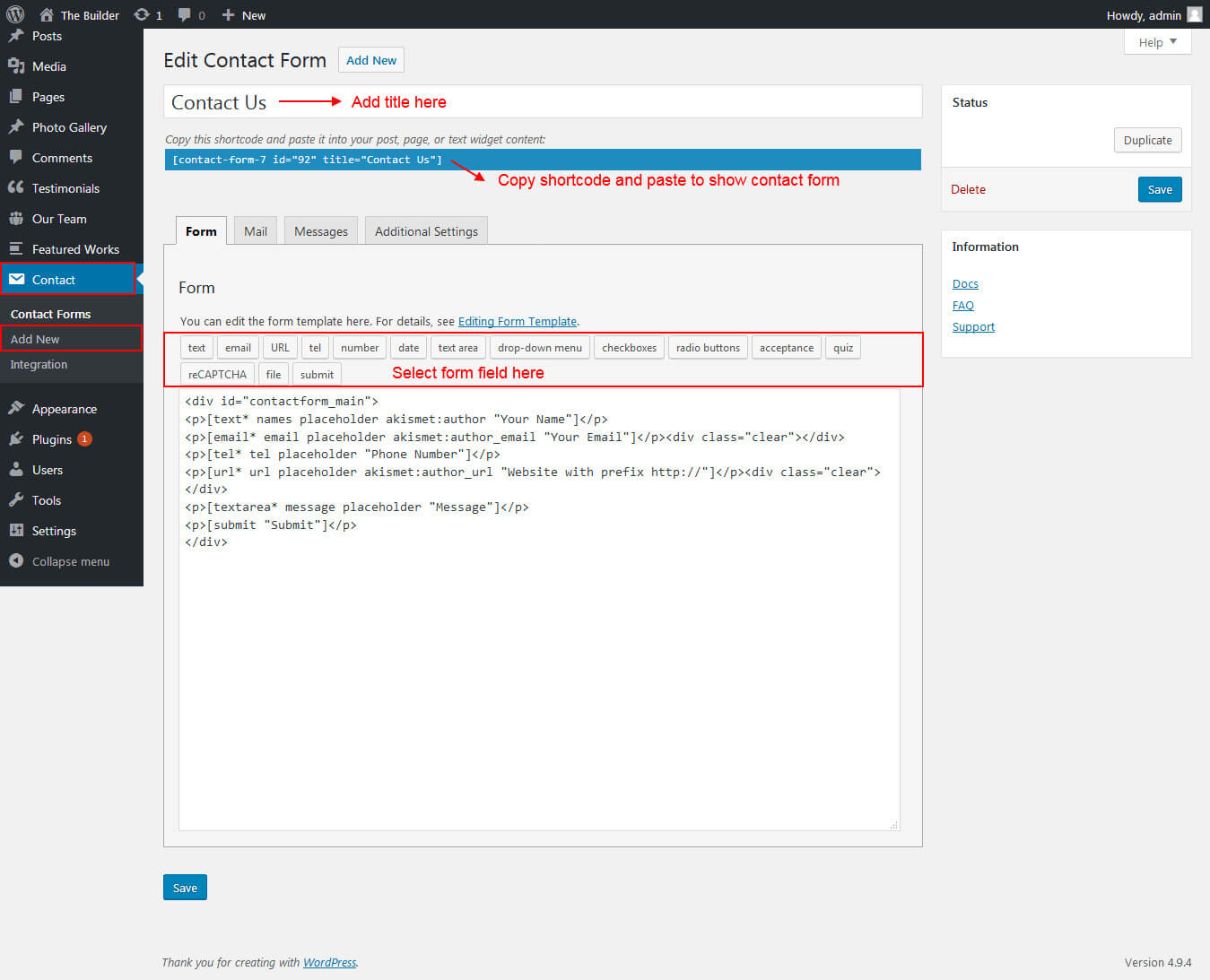

For setting up registration form section first of all you need to add some contact form 7 plugin by using plugin post type please see the below screenshot.

After adding form to Get A Free Registration go to Appearance >> Theme Options >> Sections >> Section 9.

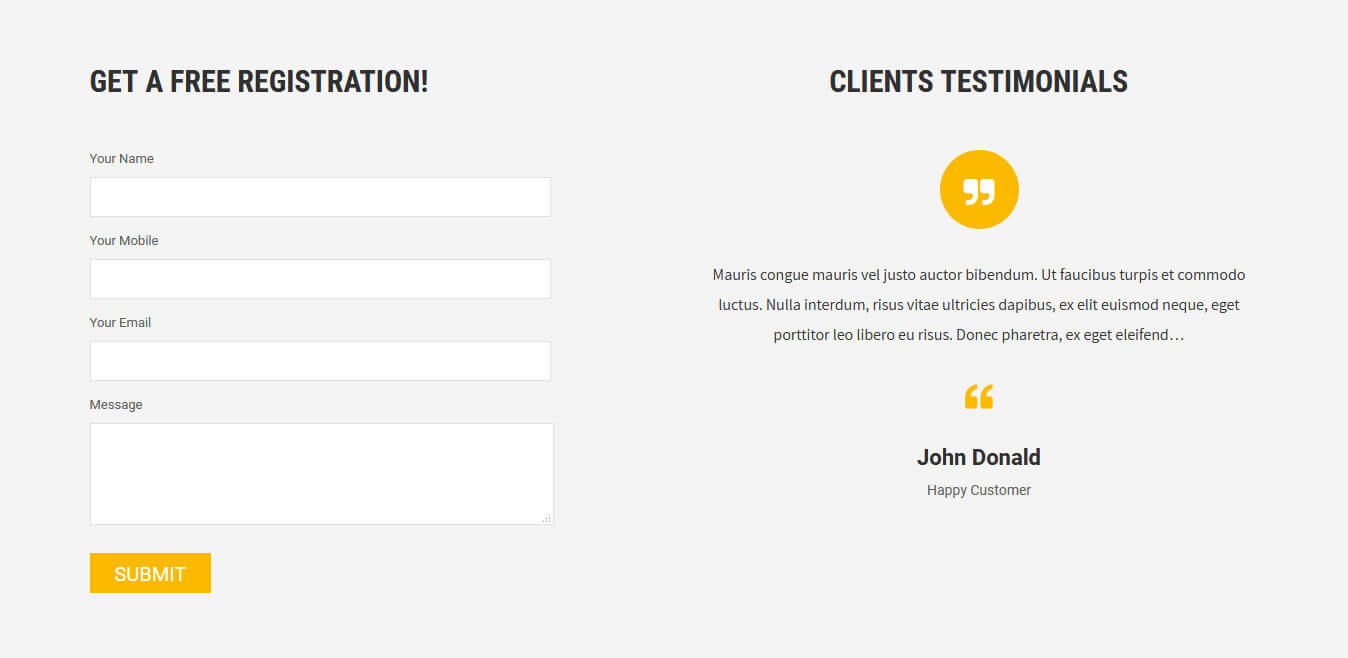

Client Testimonials And Registraion Form section Shortcode/Content:
[column_content type="one_half"]<div class="registration"><h2>Get A Free Registration!</h2>[contact-form-7 id="83" title="Registration Form"]</div>[/column_content][column_content type="one_half_last"]<h2>Clients Testimonials</h2>[testimonials][/column_content]

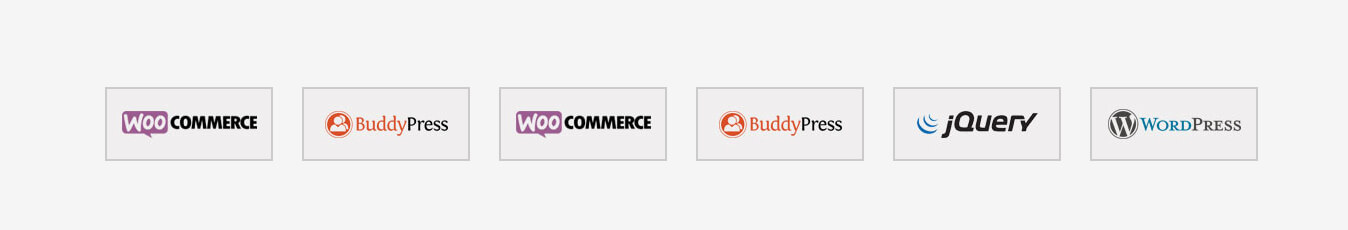

Setup Client Logo Section

For setting up client logo section Go to >> Appearance >> Theme Options >> Sections >> Select Section 10.

Shortcode/Content for Client Logo Section.
[client_lists][client image="http://localhost/alexa/structure/wp-content/themes/structure-pro/images/logo1.jpg" link="#"][client image="http://localhost/alexa/structure/wp-content/themes/structure-pro/images/logo2.jpg" link="#"][client image="http://localhost/alexa/structure/wp-content/themes/structure-pro/images/logo3.jpg" link="#"][client image="http://localhost/alexa/structure/wp-content/themes/structure-pro/images/logo4.jpg" link="#"][client image="http://localhost/alexa/structure/wp-content/themes/structure-pro/images/logo5.jpg" link="#"][client image="http://localhost/alexa/structure/wp-content/themes/structure-pro/images/logo6.jpg" link="#"][/client_lists]


Page Templates and Sidebars


Page Templates

  • Default Template (the default page template with a right sidebar position)
  • Full Width Page (a page template with one column without a sidebar)
  • Left Sidebar (a page template with left sidebar position)
  • No Sidebar (a page template have space on left and right.)
  • Blog (Full Width) (a blog templates with one column without sidebar)
  • Blog (Left Sidebar) (a blog templates with left sidebar position)
  • Blog (Right Sidebar) (a blog template with right sidebar position)
  • Blog (No Sidebar) (a blog template with no sidebar position)
  • Contact (Full Width) (a contact template with add google map position)

Posts, Categories and Post Formats

Adding category

Review the following article for more information on adding categories: http://codex.wordpress.org/Manage_Categories_SubPanel

  1. Log into your WordPress Administration Panel (Dashboard).
  2. Click the Posts tab.
  3. With that done, click Categories for blog posts.
  4. Type in the name of your new category.
  5. After that, click the Add New Category button.
Click the Publish button.

Creating a Blog post

  1. Log into your WordPress Administration Panel (Dashboard).
  2. Click the Posts tab.
  3. Click the Add New tab.
  4. Type in your post content. For more information on adding posts, please check the following link http://codex.wordpress.org/Posts_Add_New_SubPanel.

Shortcodes

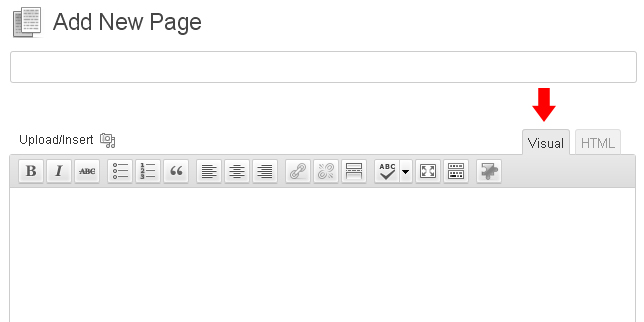

A shortcode is a powerful content building tool http://codex.wordpress.org/Shortcode. Shortcodes are easy to use. First of all, make sure that the editing mode is set to Visual.

All available shortcodes are conditionally divided into these groups:

  • Testimonials - used for testimonials output.
  • Social icon - used for social icon output.
  • One half, one third, one fourth, one fifth - used for display content on columns.
  • Tabs - used for display tabs.
  • Toggle content - used for display toggle.
  • Accordion content - used for display accordion.
  • Gradient Button - used for small, medium, large, xtra large gradient button.
  • Simple Button - used for small, medium, large, xtra large simple button.
  • Round Button - used for light, dark round button.
  • Message Boxes - used for success, error, warning, info, about message boxes.
  • Search - used to display search form.
  • List style - used to display lists.
  • Blogpost - used to display blog post.

Testimonial


[testimonials]

Elements


One half
[column_content type="one_half"]Column 1 Content goes here...[/column_content]
[column_content type="one_half_last"]Column 1 Content goes here...[/column_content]

Description: used to display column content. You can also use type="one_third OR one_fourth OR one_fifth" make sure to add _last for the last column.


Tabs
[tabs]
[tab title="TAB TITLE 1"]Tab Content goes here...[/tab]
[/tabs]

Description: use to display tab content.


Toggle content
[toggle_content title="Toggle Title 1"]Toggle Content goes here...[/toggle_content]

Description: use to display toggle content.


Accordion Content
[accordion]
[accordion_content title="ACCORDION TITLE 1"]Accordion Content goes here...[/accordion_content]
[/accordion]

Description: use to display accordion content.


Gradient Button
[gradient_button size="small" bg_color="#000000" color="#ffffff" text="text here"  title="title here" url="#" position="left"]

Description: use to display gradient button. you can use small, medium, large, xtra lareg sizes.


Simple Button
[simple_button size="small" bg_color="#000000" color="#ffffff" text="text here"  title="title here" url="#" position="left"]

Description: use to display simple button. you can use small, medium, large, xtra lareg sizes.


Round Button
[round_button style="light" text="text here"  title="title here" url="#" position="left"]

Description: use to display round button. you can use light or dark style.


Horizontal rule
[hr]

Description: used to display a horizontal line.


Succes Message Box
[message type="success"]This is a sample of the 'success' style message box shortcode. To use this style use the following shortcode[/message]

Description: use to display success message box. you can also use error, warning, info, about types.


Search
[searchform]

Description: use to display search form.


List Style
[unordered_list style="list-1"]<li>List style 1</li>[/unordered_list]

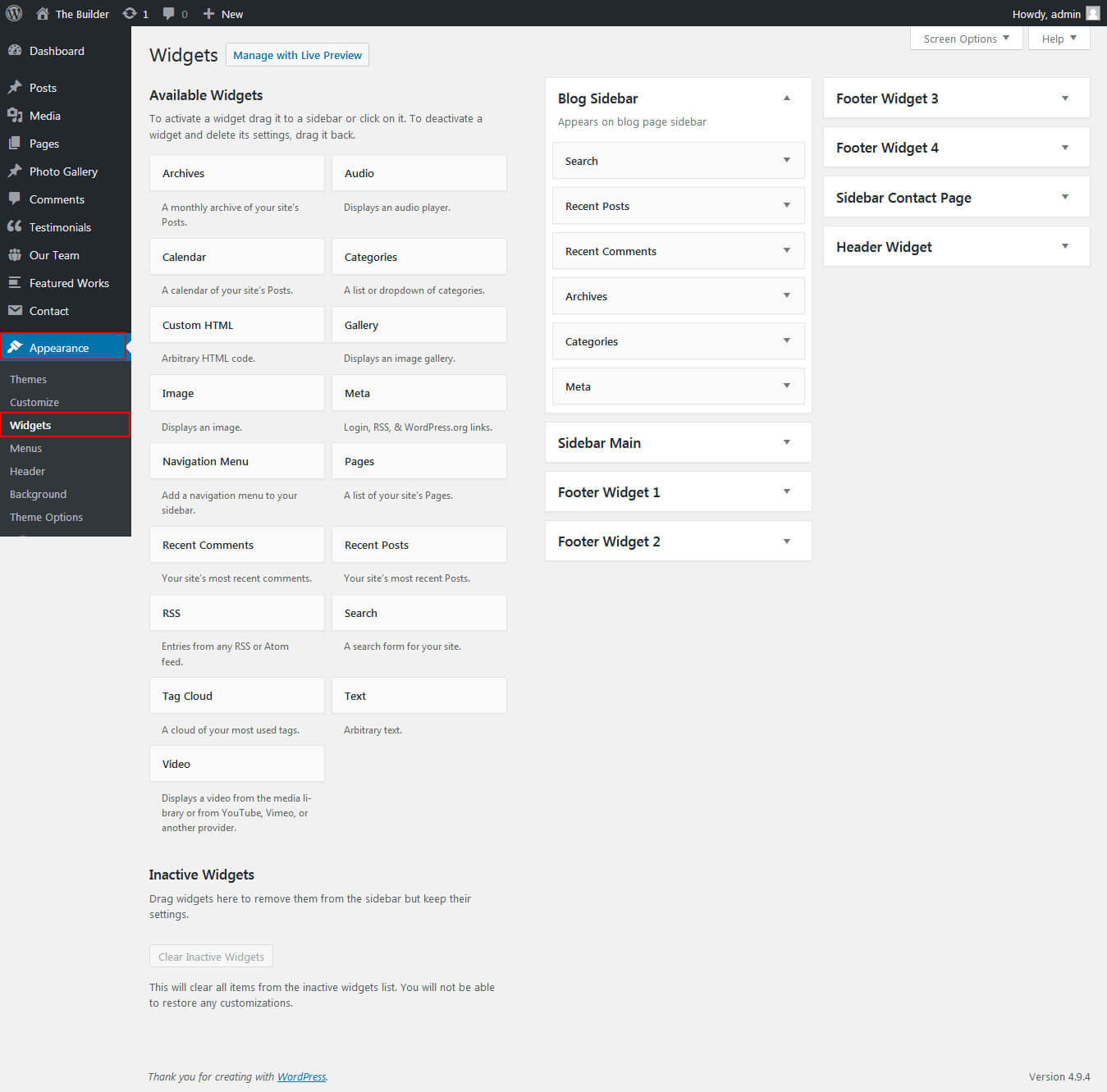

Custom Widgets

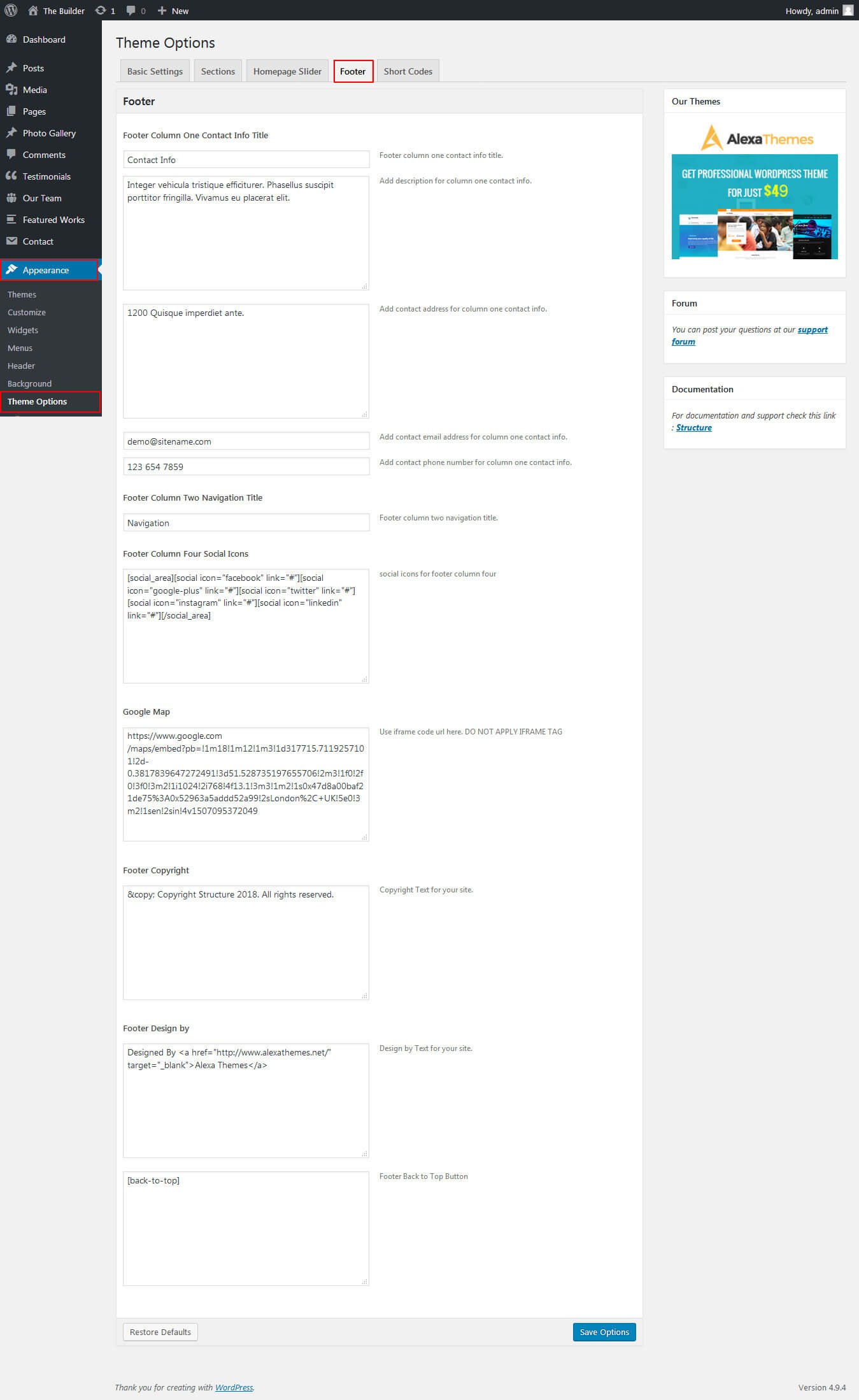

Theme Options

The following theme contains the Settings option. These settings allow you to change the theme’s color palette, order of items, turn items on/off and do lots of other things. In order to use these settings, please go to Appearance → Theme Options.

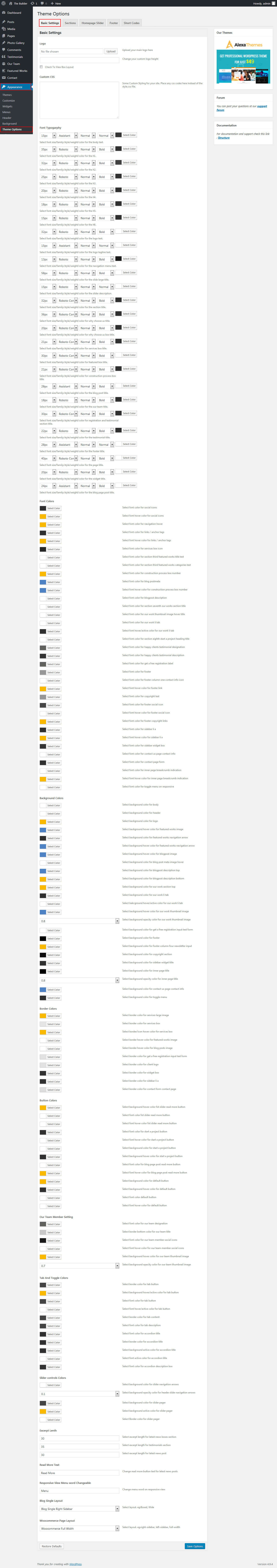

Basic Settings

Sections

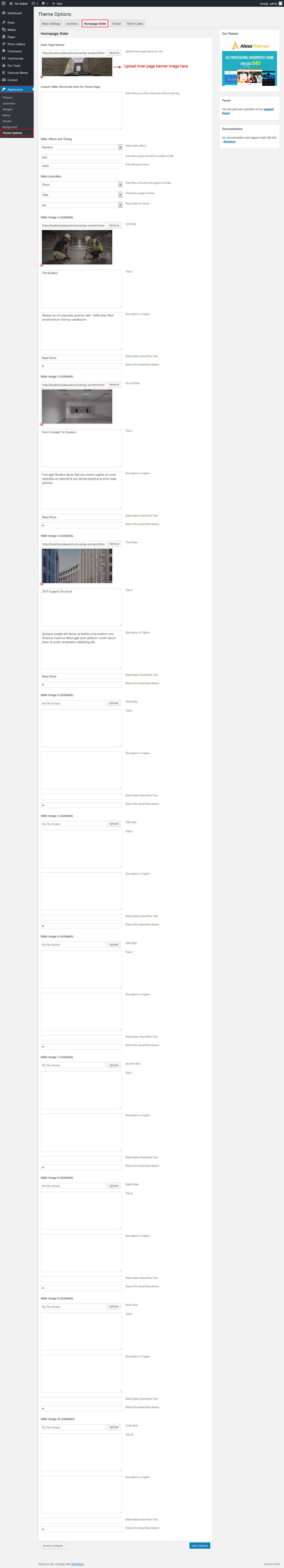

Slider Settings

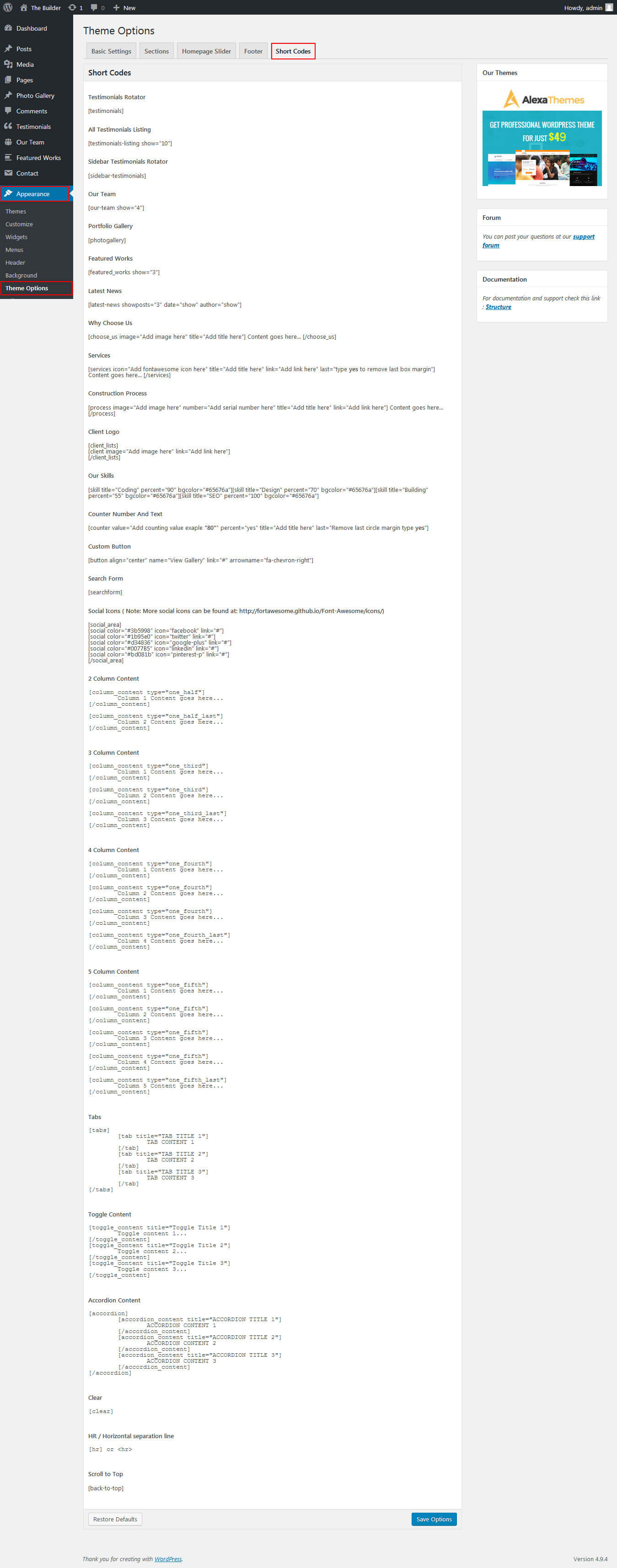

Shortcode

Contact Form 7

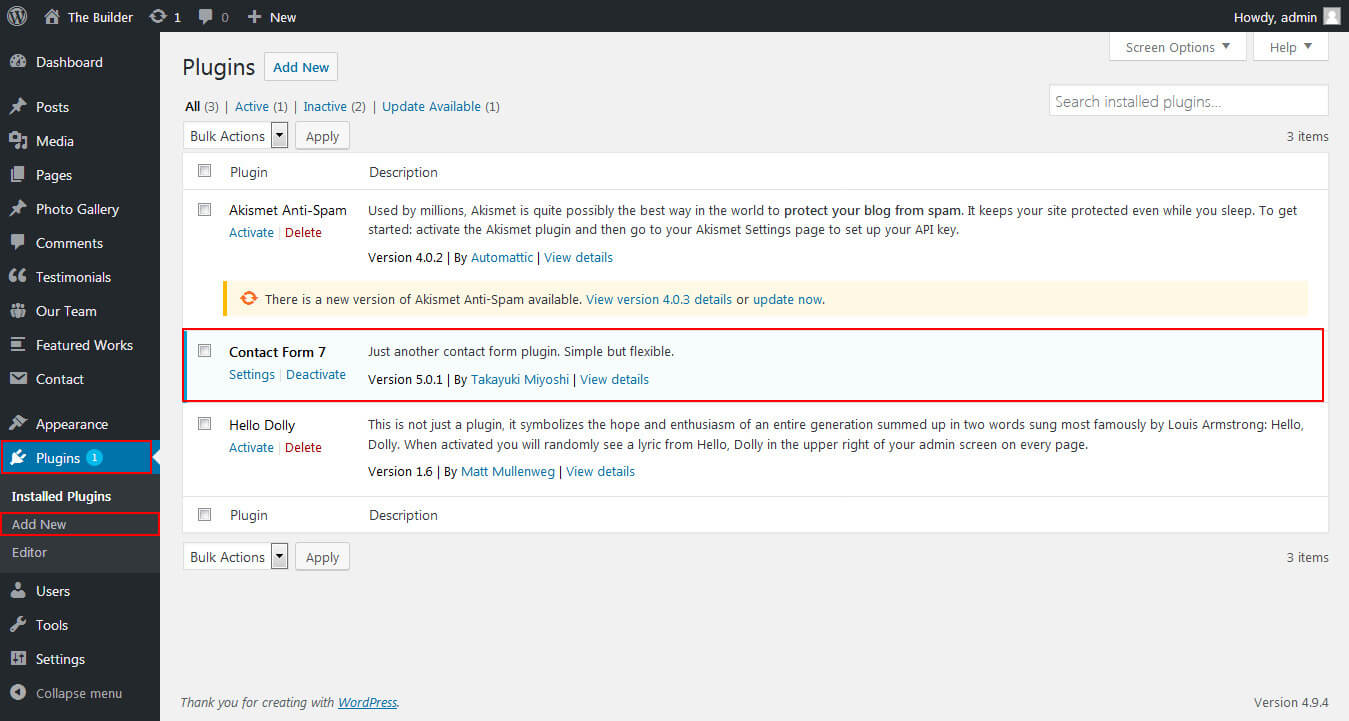

The following plugin Settings option. First upon search contact form 7 plugin and follow the below instruction, please go to Plugin → Add New.

Plugin Installation

Plugin Use
